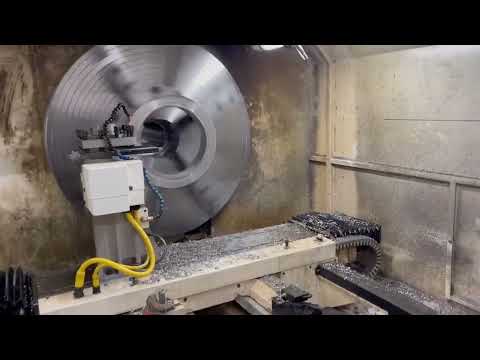

40" x 80" FRYER MODEL: ET - 40 EASY TURN CNC LATHE - NEW: 2019
ConditionUsed
1 available
40" x 80" FRYER MODEL: ET - 40 EASY TURN CNC LATHE - NEW: 2019 WITH TOUCH 2200 CNC GRAPHIC CONVERSATIONAL CONTROL
SWING OVER BED ............................ 40" SWING
SWING OVER CROSS-SLIDE .................... 28"
DISTANCE BETWEEN CENTERS .................. 80"
CROSS SLIDE TRAVEL ........................ 18"
BED WIDTH ................................. 19"
SPINDLE NOSE (CAMLOCK) .................... A2-11
SPINDLE THROUGH HOLE ...................... 6.15"
INFINITELY VARIABLE THRU 4-SPEED AUTO SHIFT HEADSTOCK
SPINDLE SPEED RANGE ........................ 10 - 1,000 RPM
TAILSTOCK:
QUILL TRAVEL ............................... 8"
QUILL DIAMETER ............................. 4.1"
QUILL TAPER HOLE ........................... #6 MORSE TAPER
MACHINE DIMENSIONS ......................... 175"L X 82"W X 78"H
APPROXIMATE WEIGHT ......................... 16,500 LBS
SIEMENS-TOUCH MODEL 2200 CNC CONTROL WITH CONVERSATIONAL GRAPHICS
6" BIG BORE OPTION
40" 4-JAW FRONT CHUCK
20" 3-JAW REAR CHUCK
FOUR POSITION PROGRAMMABLE TURRET
DUMORE OD GRINDING SPINDLE w/DRESSER FIXTURE ABOVE SPINDLE
STEADY REST
TWO SPEED MANUAL TAILSTOCK
FLOOD COOLANT SYSTEM W/ SLIDING FRONT GUARDS AND REAR COOLANT SPLASH GUARD
SET OF MANUALS FOR MACHINE AND PROGRAMMING
30 HORSEPOWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
