YCM TC-26 CNC Turning Center, 10" Chuck, 3" Bore, LNS Bar Feeder, Fanuc CNC, 4,000 RPM, Chip Conveyor
LATHES, UNIVERSAL, N/C & CNC
YCM TC-26 CNC Turning Center by Prime Machinery! This 2007 used equipment features a 10" chuck, 3" bore, LNS bar feeder, Fanuc CNC, and a chip conveyor. With a swing of 19.7", machining length of 25.4", and maximum RPM of 4,000. Equipped with a Fanuc TXP-100e CNC control, rigid box way, and programmable tailstock, it provides accurate and efficient operation.
SWING OVER BED .................... 19.68"
SWING OVER CARRIAGE ............... 13.77"
MAX. TURNING DIA. ................. 17.7"
BAR WORK CAPACITY ................. 3.07"
MAX. TURNING LENGTH ............... 25.59"
DISTANCE BETWEEN CENTERS .......... 27.55"
CHUCK DIAMETER .................... 10"
SPINDLE NOSE ...................... A2-8
SPINDLE THROUGH HOLE .............. 3.46"
SPINDLE SPEED ..................... 4,000 RPM
X-AXIS TRAVEL ..................... 9.84"
Z-AXIS TRAVEL ..................... 27.55"
SPINDLE MOTOR ..................... 20/14.7HP
TURRET POSITIONS .................. 12
SHANK HEIGHT FOR SQUARE TOOL ...... 1"
SHANK DIAMETER FOR BORING ......... 1-1/2"
TAILSTOCK QUILL DIAMETER .......... 3.93"
TAILSTOCK TAPER ................... MT NO.5
TAILSTOCK QUILL STROKE ............ 4.72"
TAILSTOCK STROKE .................. 20.86"
APPROX. MACHINE WEIGHT ............ 9,800 LBS
- FANUC TXP-100e CNC CONTROL
- 10" MMK 3-JAW HYDRAULIC CHUCK
- PARTS CATCHER

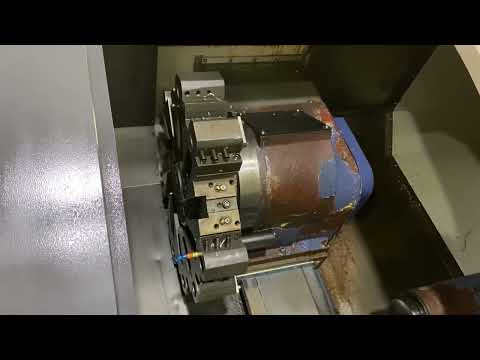

- 12 POSITION TURRET
- TAILSTOCK
- CHIP CONVEYOR
- LNS SERVO S3 BARFEED
- ALL AVAILABLE TOOLHOLDERS AND MANUALS
| $37,500.00 USD |
