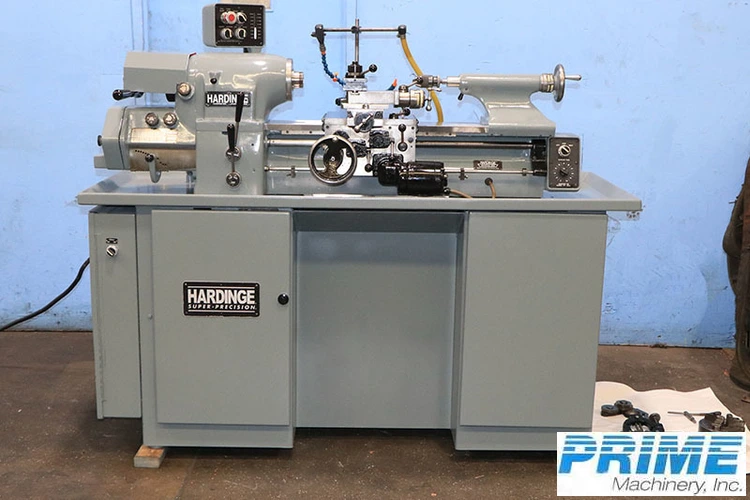

HARDINGE HLV-EM SUPER PRECISION TOOL ROOM LATHE - MACHINE RECONDITIONED IN 2023
ConditionUsed
1 available
Hardinge HLV-EM Super Precision Tool Room Lathe. Features new spindle bearings, dual gearbox for precise threading, and reground cross slide. Equipped with Hardinge 5C collet closer, 3-jaw chuck, and more. Visit NJ warehouse for viewing.
SPINDLE CONSTRUCTION ................. HARDINGE BALL BEARING
SPINDLE NOSE THREADED ................ 2-3/16" 10RH
SPINDLE CAPACITY:
WITH ROUND TYPE 5C COLLETS ....... 1-1/16"
WITH STEP CHUCKS ..................... 1-1/16" TO 6"
WITH JAW CHUCKS ...................... 5"
WITH EXPANDING COLLETS ............... 3"
VARIABLE SPINDLE SPEEDS .............. 125 - 3,000 R.P.M.
HOLE THROUGH SPINDLE ................. 1-1/4"
SWING OVER BED ....................... 11"
SWING OVER CARRIAGE .................. 9"
SWING OVER CROSS SLIDE ............... 6"
DISTANCE BETWEEN CENTERS ............. 18"
COMPOUND SLIDE TRAVEL ................ 3"
CARRIAGE POWER FEED RANGE ............ 5/16 - 7 I.P.M.
CROSS SLIDE POWER FEED RANGE ......... 3/16 - 4 I.P.M.
TAILSTOCK SPINDLE DIAMETER ........... 1-3/8"
TAILSTOCK SPINDLE TAPER .............. #2 MT
INCH THREADING RANGE IN GEARBOX (36) . 11 - 108 T.P.I.
METRIC THREADING RANGE IN GEARBOX (36) 0.275 - 2.7 MM
APPROXIMATE WEIGHT ................... 1,700 LBS.
- REGROUND BED PLATE & NEW TURCITE UNDER CARRIAGE
- HARDINGE CROSS SLIDE REGROUND
- NEW SPINDLE BEARINGS
- NEW HARDINGE CROSS FEED SCREW & NUT
- DUAL GEARBOX FOR PRECISION ENGLISH OR METRIC THREAD CUTTING
- DUAL READING INCH/METRIC DIAL FOR COMPOUND AND TAILSTOCK
- HARDINGE BALL BEARING QUICK ACTING 5C COLLET CLOSER
- ASSORTMENT OF 5C COLLETS
- HARDINGE 3-JAW CHUCK
- HARDINGE FOUR-WAY TOOLPOST
- STEADY REST
- ALBRECHT KEYLESS DRILL CHUCK
- SELF-CONTAINED COOLANT SYSTEM
- 0.5 - 1 HORSE POWER TWO-SPEED MAIN DRIVE MOTOR
WIRED FOR 208 VOLT
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: **** SUPERB ****
