Mitsubishi MV-2400R Wire EDM New: 2017
$114,500.00 USD
ConditionUsed
1 available
Mitsubishi MV-2400R Wire EDM, a reliable and efficient machine. This 2017 model offers impressive specs with X: 23.6", Y: 15.7", Z: 12.2" travels and auto threading capability. Perfect for precision work, it boasts a max taper angle of 10.2" and can handle wire diameters from 0.004" to 0.012". With a max workpiece weight of 3,307 lbs and dimensions of 41.3" x 32.3" x 12".
X:......................... 23.6"
Y:......................... 15.7"
Z:......................... 12.2"
Auto Threading (Yes/No:.... Yes
Dimensions:................ 105" W x 119.3" D x 84.6" H
Weight:.................... 7,716 lbs
Max Workpiece Dimensions:.. 41.3" x 32.3" x 12"
Max Workpiece Weight:...... 3,307 lbs
Table Dimensions:.......... 33" x 25.2" (4-Sided)
Machine Travels (XxYxZ):... 23.6" x 15.7" x 12.2"
Machine Travels (UxV):..... 2.9" x 2.9"
Max Taper Angle:........... 10.2"
Wire Diameter:............. 0.004" to 0.012"
ADVANCE PLUS Control

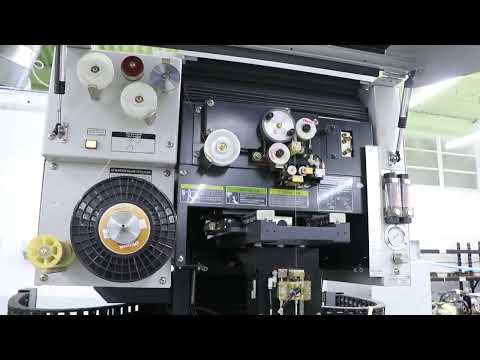

Automatic Wire Threading
LOW HOURS WITH 11,044 MACHINING TIME
