Kitamura Mycenter-HX250G CNC Horizontal Machining Center - New: 2013
MACHINING CENTERS,HORIZ,N/C & CNC(Incl.Pallet Changers)

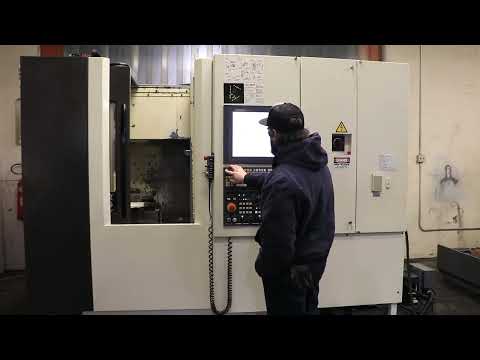

Kitamura Mycenter-HX250G CNC Horizontal Machining Center, 2013, 15,000 RPM, CTS, Full 4th Axis
X-AXIS TRAVEL ....................... 12"
Y-AXIS TRAVEL ....................... 12"
Z-AXIS TRAVEL ....................... 13"
SPINDLE POWER ....................... 15 HP
SPINDLE SPEED ....................... 15,000 RPM
TOOL POSITIONS ..................... 40
SPINDLE TAPER ....................... BT-30
PALLET DIMENSIONS ................... 10" X 10"
NUMBER OF PROGRAMMABLE AXES ......... 4
MAXIMUM WORKPIECE DIAMETER .......... 13.8"
MAXIMUM WORKPIECE HEIGHT ............ 15.8"
RAPID FEED RATES X,Y,Z .............. 2,362 IPM
CUTTING FEED RATE X,Y,Z ............. 2362 IPM
RAPID FEED (B-AXIS) ................. 33.3 RPM
NUMBER OF PALLETS ................... 2
APC CHANGE TIME ..................... 8 SECONDS
REQUIRED FLOOR SPACE .......... 111.5" X 116.1" X 89.9" H
APPROXOMATE MACHINE WEIGHT .......... 12,000 LBS
KITAMURA ARUMATIK-MI 4-AXIS CNC CONTROL
FULL 4TH AXIS
COOLANT THROUGH THE SPINDLE 220 PSI
CHIP CONVEYOR
New Spindle installed by Kitamura approximately 3 years ago.
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
