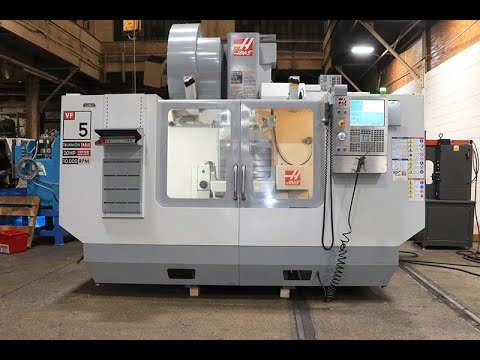

Haas VF-5/40TR 5-Axis Vertical Machining Center
MACHINING CENTERS, VERICAL (5-Axis or More)
| X | 50" |
| Y | 26" |
| Z | 25" |
| # Axis | 5 |
| Power | 20 hp |
| RPM | 10,000 RPM |
| # ATC | 40 |
| Taper | CT or BT 40 |
SPECIFICATIONS:
TRAVELS
X-AXIS ......................... 50"
Y-AXIS ......................... 26"
Z-AXIS ......................... 25"
A-AXIS TILT .................... + OR - 120 DEGREES
B-AXIS ROTATION ................ 360 DEGREES
PLATEN DIAMETER ................ 8.3"
MAXIMUM WEIGHT ON PLATTEN ...... 200 LB
TABLE DIMENSIONS ............... 52" x 23"
MAX WEIGHT ON TABLE ............ 4,000 LBS
SPINDLE SPEED RANGE ............ 0 - 10,000 RPM
SPINDLE MOTOR .................. 20 HP
SPINDLE TAPER .................. CT#40
TOOL CHANGER ................... 40 POSITION
APPROXIMATE MACHINE DIMENSIONS . 139"L x 102"W x 115"H
APPROXIMATE MACHINE WEIGHT...... 16,500 LBS
EQUIPPED WITH:
- HAAS 5-AXIS CONTROL (DRIVES & WIRING)
- TRUNNION TABLE 2-AXIS
- WIRELESS PROBING SYSTEM
- CHIP AUGER
- COOLANT SYSTEM
- PROGRAMMABLE COOLANT
- RIGID TAP
| $109,000.00 USD |
