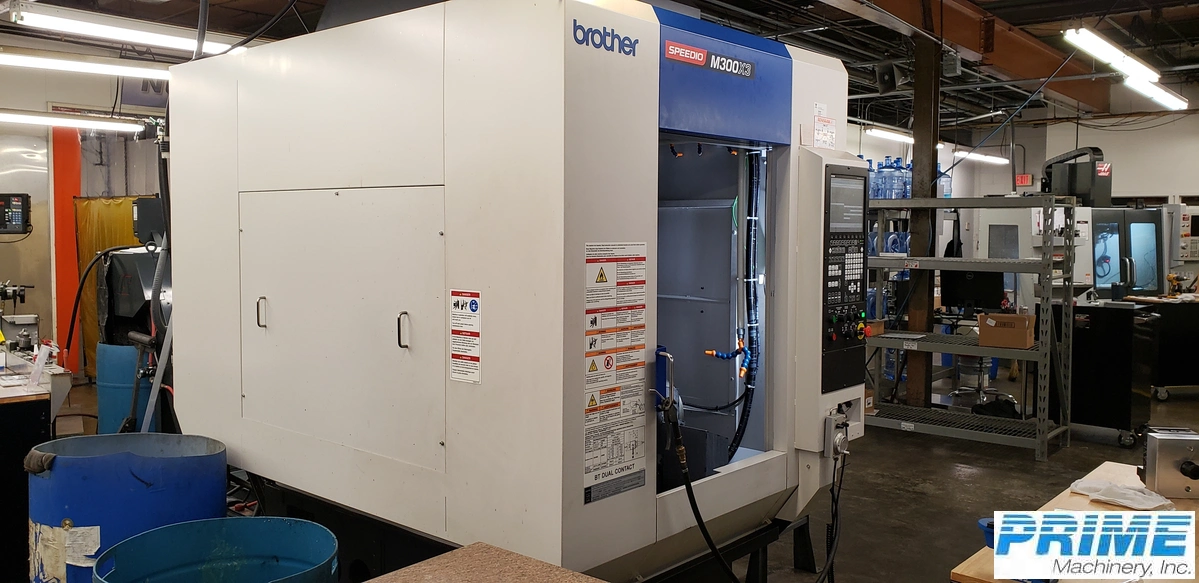

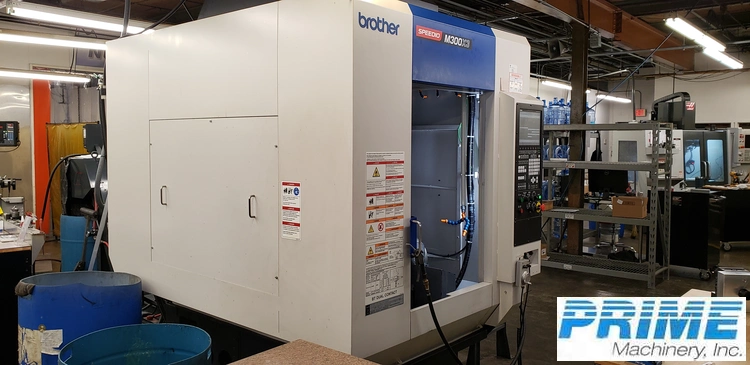

Brother Speedio M300X3 5-Axis Mulit-Tasking Machine, new 2020
MACHINING CENTERS, VERICAL (5-Axis or More)
Brother Speedio M300X3 5-Axis Mulit-Tasking Machine, new 2020
| X | 11.8" |
| Y | 17.3" |
| Z | 12" |
| # Axis | 5 |
| Power | 10 hp |
| RPM | 16,000 RPM |
| # ATC | 22 |
| Taper | BT-30 |
X-Axis Travel 11.8"
Y-Axis Travel 17.3"
Z-Axis Travel 12.0"
A-Axis Degrees 120 to 30
C-Axis Degrees 30
Table:
Work Area Size 6.7"
Max Loading Capacity 165 Lbs
Spindle:
Spindle Speed 16,000 rpm
Speed During Tapping max 6,000 rpm
Spindle Taper BT-30 Dual Contact
Spindle Motor 9.9/6 HP
Turning Spindle:
Max Turning Spindle Speed 1,500 rpm
Feed Cutting:
Rapid traverse rate (XYZ) 1,969 ipm
Cutting Feed Rate 0.04 to 1,181 ipm
Indexing Feed rate (A and C) 50 and 200 min
Tool Changer:
Tool Storage Capacity 22
Tool Change Time (tool to tool) 0.8 seconds
Machine Dimensions:
Required Floor Space 59.8" x 152" x 104.4" H
Machine Weight 6,400 Lbs
Brother CNC-C00 5-Axis control (X,Y,Z,A,C)
Simultaneously Controlled Axes: Positioning 5 Axes, Interpolation Linear 4 Axes (X,Y,Z one additional axis)
Circular: 2-axis Helical/Conical : 3axes (X,Y,Z)
Tool Washing System
Automatic Grease Lubrication System
Chip Shower System
Manual Pulse Generator
LNS Turbo Hinge Belt Conveyor
435 PSI High Pressure Pump (Coolant through spindle)
Renishaw Probe
High Accuracy Mode BII
