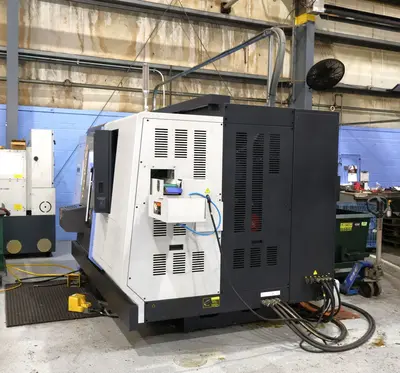

DOOSAN PUMA TT1800SY CNC TURNING CENTER WITH SUB-SPINDLE & Y-AXIS - NEW: 2020
ConditionUsed
1 available

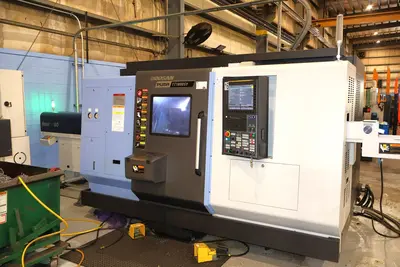

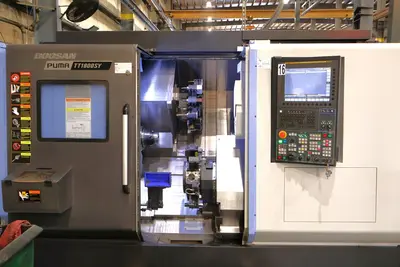

Doosan Puma TT1800SY CNC Lathe, 2020, used. Equipped with FANUC OiTP control, Y-axis, sub-spindle, and live milling. Includes parts catcher, tool setter, and bar loader option.
SWING OVER BED 9.05"
MAX CUTTING DIAMETER 9.05"
MAX CUTTING LENGTH 9.1"
DISTANCE BETWEEN CENTERS 38.5"
X-AXIS TRAVEL 6.5"
Y-AXIS TRAVEL 3.93"
Z-AXIS TRAVEL 27.5"
C-AXIS INDEXING 600 RPM
BAR CAPACITY 2.625"
SPINDLE NOSE A2-6
SPINDLE MOTOR 30 hp
SPINDLE SPEED 5,000 RPM
RAPID TRAVERSE RATE - X-AXIS 787 in/min.
RAPID TRAVERSE RATE - Y-AXIS 295 in/min.
RAPID TRAVERSE RATE - Z-AXIS 1,575 in/min.
SUB SPINDLE Yes
SUB SPINDLE - BAR CAPACITY 2.625"
SUB SPINDLE - SPINDLE NOSE A2-6
SUB SPINDLE - SPINDLE MOTOR 30 hp
SUB SPINDLE - SPINDLE SPEED 5,000 RPM

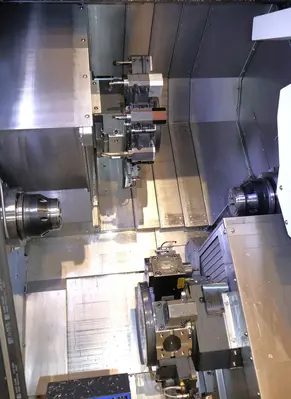

TURRET 2 - X-AXIS TRAVEL 7.5"
TURRET 2 - Z-AXIS TRAVEL 28.3"

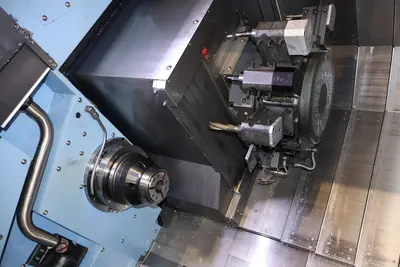

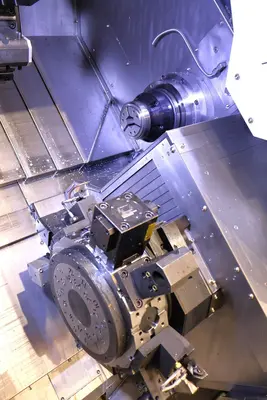

TURRET CAPACITY (STATIONS) 12
TURRET TYPE BMT55
LIVE MILLING Yes
LIVE MILLING SPEED 5,000 RPM
LIVE MILLING MOTOR 7.5 hp
TURRET 2 CAPACITY (STATIONS) 12
Y-AXIS Yes
EQUIPPED WITH:

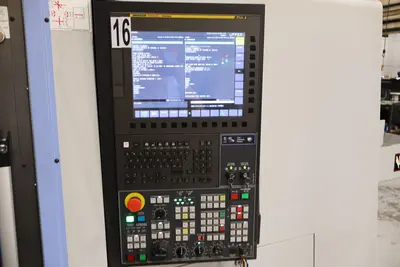

FANUC OiTP CNC CONTROL W/DOOSAN EZ GUIDE i CONVERSATIONAL PROGRAMMING
EDGE TECHNOLOGIES REBEL 80SE SERVO BARLOADER
LIVE HOLDERS INCLUDED:
* (4) X-AXIS EPPINGER PRECI-FLEX ROTARY HOLDERS
* (2) Z-AXIS EPPINGER PRECI-FLEX ROTARY HOLDERS
SET UP FOR UNLOADING OF PART THROUGH SUB HEADSTOCK (SEE BELOW UNLOADER FOR SEPARATE SALE)
Y-AXIS ON UPPER TURRET
FULL C-AXIS ON MAIN AND SUB-SPINDLES
MISC LIVE AND STATIC HOLDERS
PARTS CATCHER (MAIN)
PROGRAMMABLE PARTS UNLOADER/CONVEYOR (SUB)

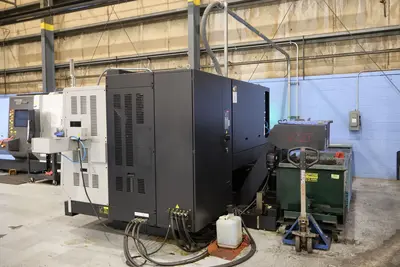

TURBO REAR DISCHARGE CHIP CONVEYOR W/ M-CODE CAPABILITY ($16,850 OPTION)
145 PSI COOLANT PUMPS FOR UPPER AND LOWER TURRETS ($4,400 OPTION)
TOOL SETTER
3 COLOR TOWER LIGHT
WAY LUBE OIL SKIMMER
SOLID BOX WAY CONSTRUCTION ON HEAVY DUTY ONE-PIECE MEEHANITE CAST IRON BED
ROYAL QG65 COMPACT COLLET CHUCKS ON BOTH LEFT AND RIGHT SIDE ($8,000 OPTION)
AUTO DOOR ($8,900 OPTION)

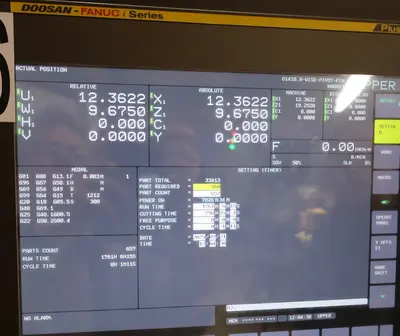

HOURS AS OF 7/21/2025 (as pictured):
UPPER TURRET:
- POWER ON: 7,826 HOURS
- RUN TIME: 1,761 HOURS
- CUTTING TIME: 790HOURS
LOWER TURRET:
- POWER ON: 7,826 HOURS
- RUN TIME: 1,713HOURS
- CUTTING TIME: 225 HOURS
**** MACHINE ORIGINALLY SOLD WITH EDGE REBEL 80 UNLOADER -- COST NEW: OVER $45,000. IF INTERESTED - PLEASE INQUIRE FOR SEPARATE SALE.
*** OPTIONAL FMB TURBO 5-65 BARFEED AVAILABLE FOR SEPARATE COST
REPLACEMENT COST FOR ABOVE MACHINE IF PURCHASED NEW TODAY: OVER $330,000
** MACHINE IS CURRENTLY IN PLANT, INSTALLED JANUARY 2021
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
