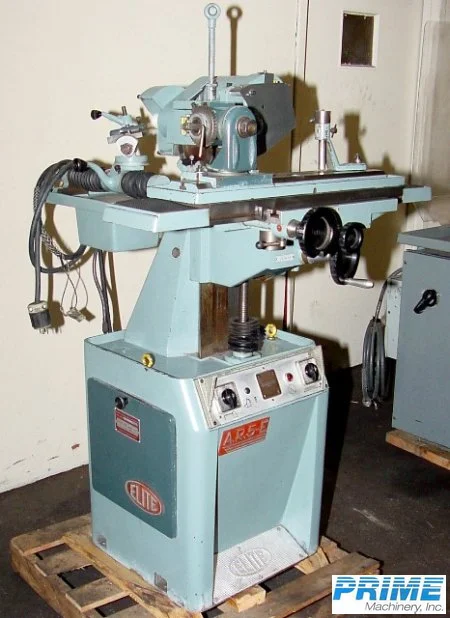

1975 ELITE AR5E

TABLE SIZE ....................... 3" X 24"
TABLE SWIVELS AT CENTER PIVOT .... YES
TABLE TRAVEL ..................... 11- 13/16"
CROSS TRAVEL ..................... 5- 5/16"
VERTICAL MOVEMENT ................ 8- 1/4"
HANDWHEEL GRADUATIONS ............ 0.001"

GRINDING WHEELHEAD ............... 6" DIAMETER WHEELS
SPINDLE SPEEDS (3) ............... 2,800, 5,000 & 7,500 RPM
GRINDING WHEEL SWIVELS ........... 180 DEGREES
GRINDING WHEEL TILTS ............. PLUS/MINUS 20 DEG.

APPROX. DIMENSIONS ............... 36"L-R x 44"F-B x 58"H
APPROX. WEIGHT ................... 1,500 LBS.

EQUIPPED WITH:
UNIVERSAL TOOL FIXTURE MOUNTED ON A SWING-AWAY BRACKET
WORKHEAD
TABLE MOUNTED WHEEL DRESSER
3/4 H.P./3/60/220-440 VOLT GRINDING WHEELHEAD MOTOR

*** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) ***

*****INSPECT UNDER POWER IN OUR NJ WAREHOUSE*****
